Product Description
DILVAC™ Portable Dry Ice Block Maker
Make a 2.2-lb dry-ice block in ~1 minute, on demand!
For biotech, clinical diagnostics, drug development, food safety, and shipping teams that are done scrambling for deliveries and watching dry ice sublimate away. No electricity required—just a liquid CO₂ cylinder with a siphon tube and the appropriate hose connection on the valve.
Applications
-
Snap-freezing tissue and clinical samples; cold-chain handoffs
-
Reaction quenching, solvent/dry-ice baths
-
On-site packaging for cold shipment
Why labs choose this unit
-
Fast: ~1 kg (2.2 lb) block in about 1 minute.
-
Cost control: Typical yield 5–6 blocks per 75-lb liquid CO₂ cylinder at room temp (Pro Tip: yields more at cooler temps).
-
Simple and reliable: Manual operation—no power or moving parts. Comes with steel pressure hose and gauge.
-
Compact: Small footprint; store under a bench or on a shelf.
How it works (4 steps)
-

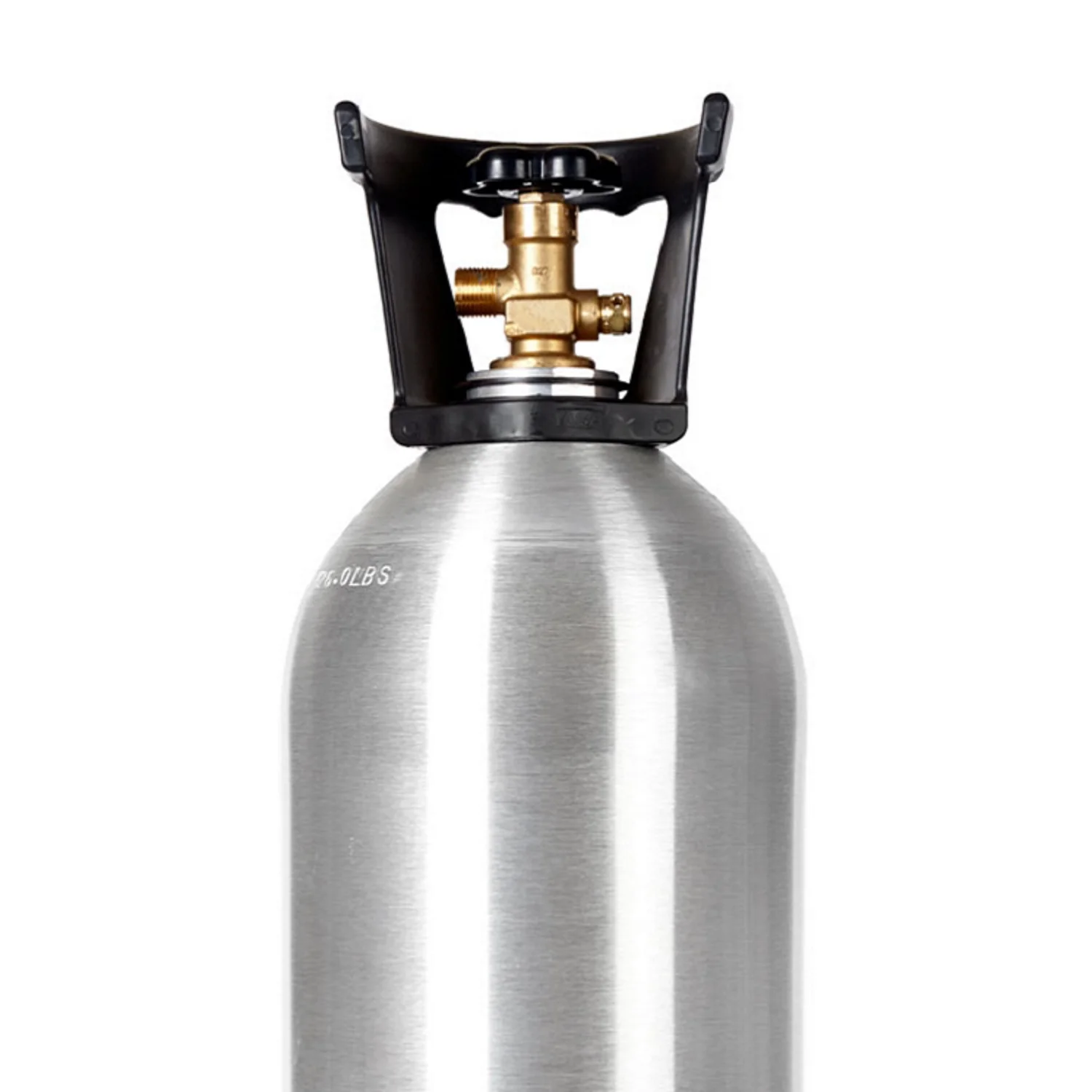

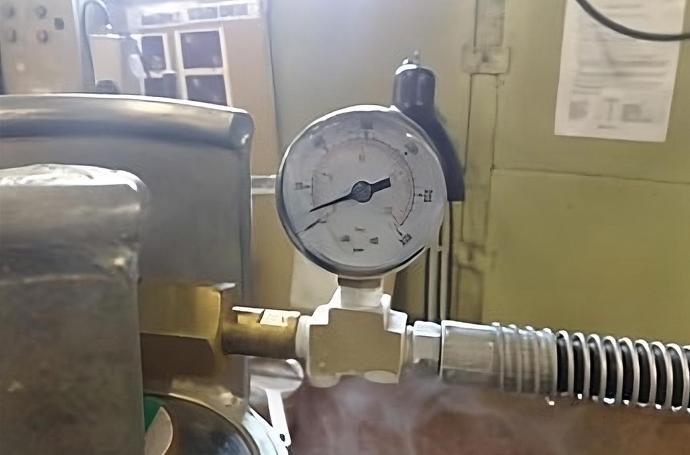

Connect the pressure hose to a liquid CO₂ cylinder with siphon and CGA-320 valve.
-
Open the CO₂ flow and monitor on the gauge.
-

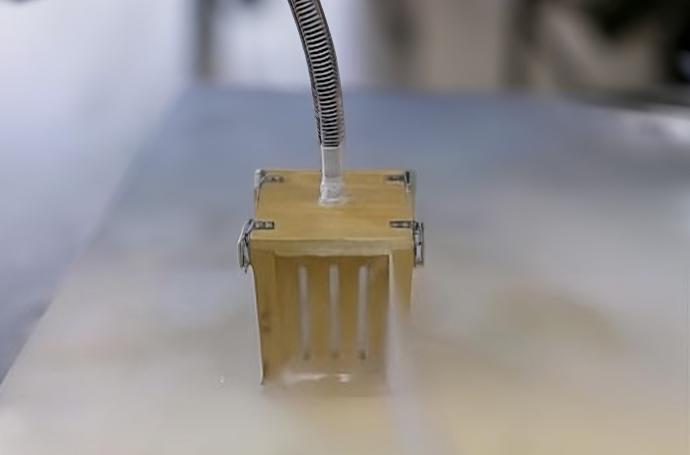

Dry ice forms inside the chamber; vapor vents through the slots while the block compacts.
-

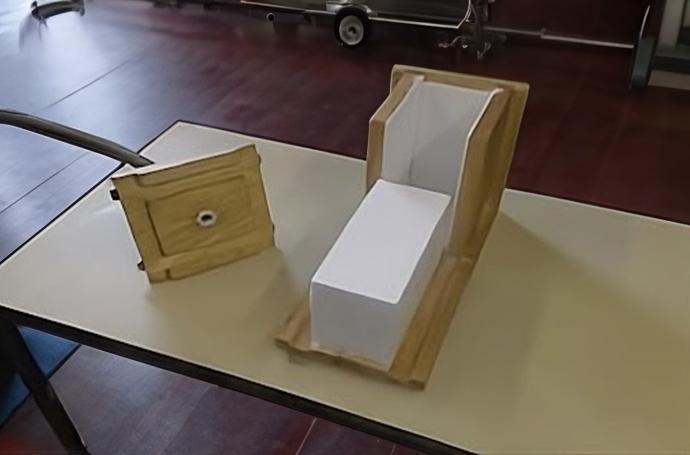

After ~1 minute, open the front, remove the solid block.
Specifications
| Item | Details |
|---|---|
| Output | ~1 kg (2.2 lb) block in about 1 minute |
| Typical yield | 5–6 blocks per 75-lb liquid CO₂ cylinder @ room temp (higher yield at ~41 °F) |
| CO₂ source | Liquid CO₂ with internal siphon |
| Cylinder connection | CGA-320 (USA) or BS 341 No. 8 or DIN 477 No. 6 (International) |

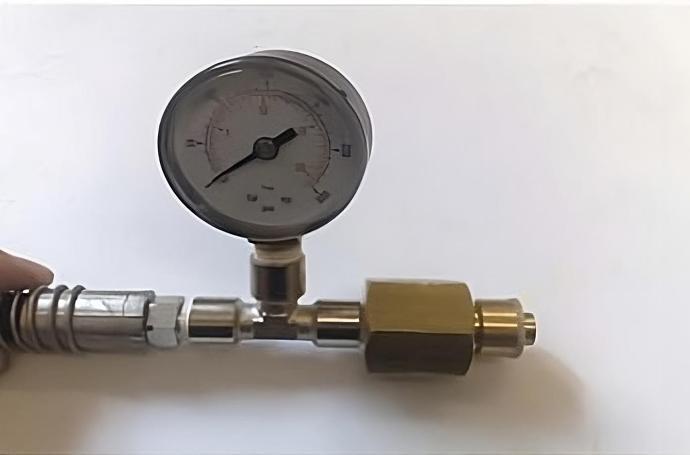

| Included | Steel pressure hose with gauge; washer; instructions |
| Unit dimensions | 8.9" L × 6.3" W × 6.3" H |
| Block size (approx.) | 7.0" L × 3.2" W × 4.3" H |
USA vs. International Versions
-
300002 (USA): CGA-320 connection.
-
300001 (International): connections for BS 341 No. 8 or DIN 477 No. 6 CO₂ threads.
Your page can list both SKUs so global buyers find the right valve standard quickly.
What’s in the box
-
DILVAC Portable Dry-Ice Maker (SKU# DILV 300001 (International) DILV 300002 (USA)
-
Steel pressure hose with gauge,
-
Plastic washer.
Safety
-

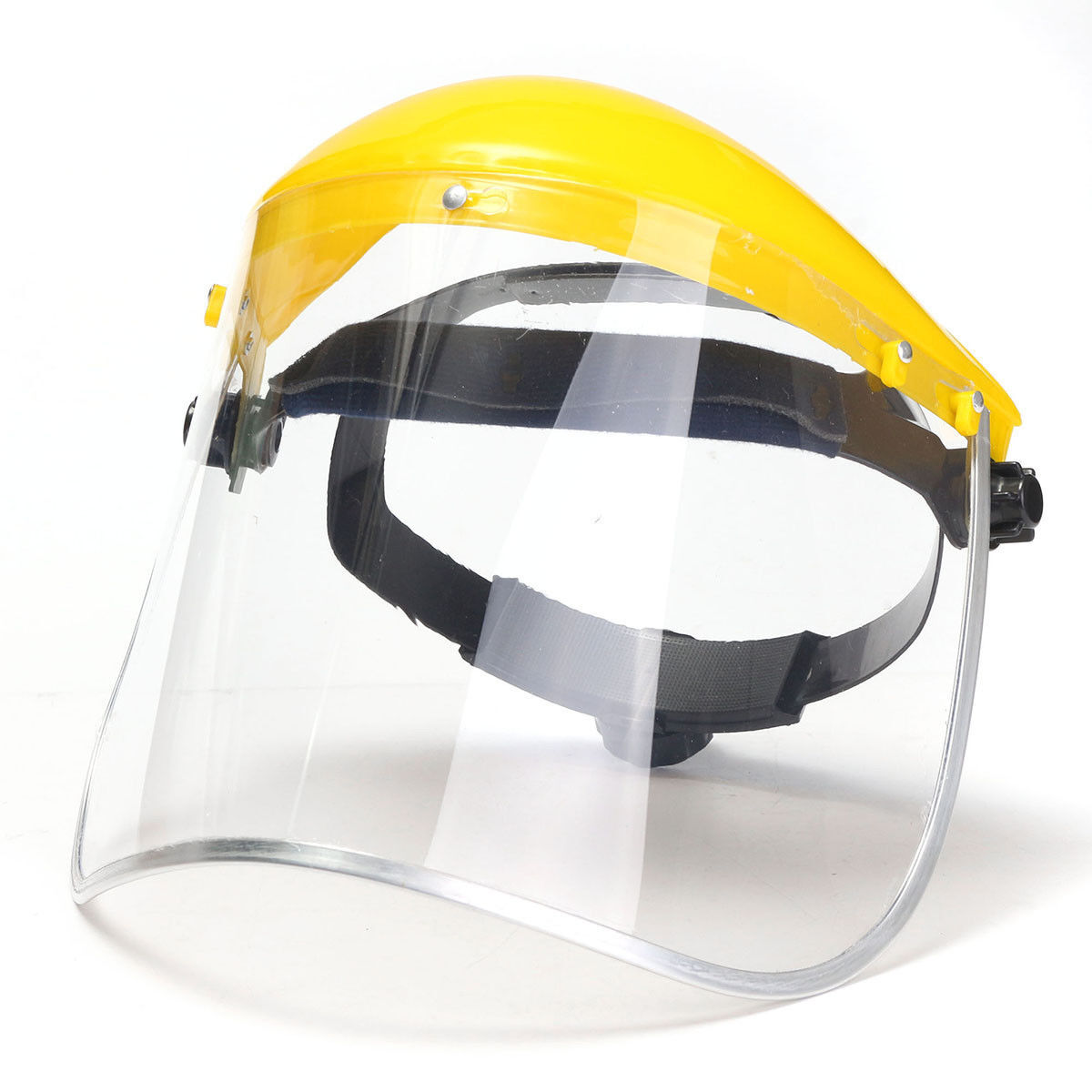

Use appropriate PPE (cryogenic gloves, apron, goggles/face shield).
-
Ensure good ventilation; avoid CO₂ buildup. Gaseous CO2 vapours can cause suffocation, so use the unit only in well-ventilated areas.
-
To avoid cryogenic liquid spillage, use the unit only on a level supporting surface, and never allow the unit to hang from the feed hose.
-
Open cylinder valve slowly and follow gauge guidance in the manual (e.g., keep within inner-scale ranges to avoid waste).
-
Only use liquid-withdrawal cylinders (with siphon).
Document Downloads
FAQ
Q: What kind of CO₂ cylinder do I need?
A: A liquid CO₂ cylinder with an internal siphon. (Standard gas-withdrawal cylinders won’t work.)
Q: How many blocks per cylinder?
A: Typically produces 5–6 blocks from a 75-lb cylinder at room temperature; cooler ambient temps can increase yield, i.e. @ 5°C (41°F) approximately 1/3 more blocks produced.
Q: Do I need electricity or compressed air?
A: No, this unit is manual and requires only the liquid CO₂ cylinder.
Q: What size block does it make?
A: About 7.0" × 3.2" × 4.3", weighing about 1kg (2.2 lbs.),
Q: Is it a solid block or slush?
A: A solid block (not slush).
